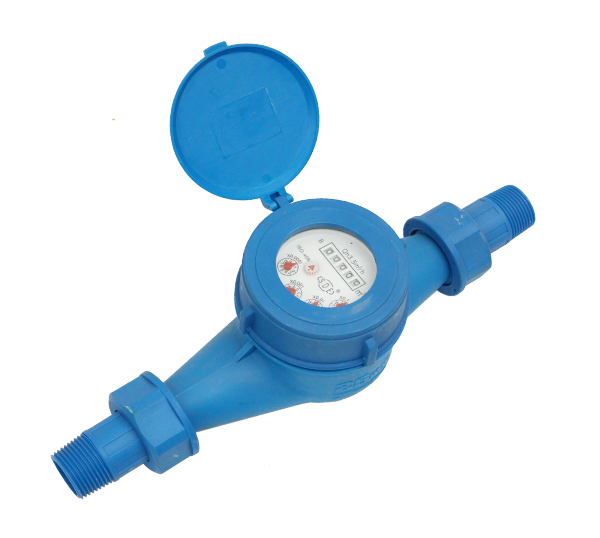

Product name: Rotatory wing dry cold water meter
Category: Mechanical water meters Product model: LXSG-15E~50E LXSGR-15E~50E
Name: LXSG-15E ~ 50E rotary-wing dry cold water meter
LXSGR-15E ~ 50E rotary-dry, hot water
Conditions of Use:
Temperature class: T30 / T50 (cold water) T90 (hot water)
Pressure Level: MAP 10 / MAP 16
Pressure loss rating: △ P 63
Indication error limit:
From minimum flow (Q1) to excluding transitional flow (Q2) of the lower zone ± 5%
From the high zone of the transitional flow (Q2) to overload flow (Q4) of cold water ± 2%, ± 3% of hot water
Characteristics and main technical parameters:
Dry, magnetic drive, magnetically shielded; multi-stream, high-quality materials, stable and reliable performance;
Vacuum sealed, anti-condensation fogging, long term clear reading; measurement accuracy, durability.
It can be rotated counter to make reading more convenient; series versatility, easy replacement and maintenance.
The main technical parameters:
| caliber DNmm | Measuring range | Traffic overload | Common flow Q3 | Transitional Flow Q2 | Minimum flow Q1 | Starting flow | Minimum reading | The maximum reading | |
| Q3/Q1 | Q4 | ||||||||
| m3/h | L/h | m3 | |||||||
| 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 6 | 0.00005 | 99999 | |
| 100 | 40 | 25 | |||||||
| 125 | 32 | 20 | 5 | ||||||
| 160 | 25 | 15.625 | |||||||
| 20 | 80 | 5 | 4 | 80 | 50 | 10 | |||
| 100 | 64 | 40 | |||||||
| 125 | 51.2 | 32 | 6 | ||||||
| 160 | 40 | 25 | |||||||
| 25 | 80 | 7.875 | 6.3 | 126 | 78.78 | 12 | |||
| 100 | 100.8 | 63 | |||||||
| 125 | 80.64 | 50.4 | 8 | ||||||
| 160 | 63 | 39.375 | |||||||
| 32 | 80 | 12.5 | 10 | 200 | 125 | 14 | |||
| 100 | 160 | 100 | |||||||
| 125 | 128 | 80 | 10 | ||||||
| 160 | 100 | 62.5 | |||||||
| 40 | 80 | 20 | 16 | 320 | 200 | 40 | |||
| 100 | 256 | 160 | |||||||
| 125 | 204.8 | 128 | 35 | ||||||
| 160 | 160 | 100 | |||||||
| 50 | 80 | 31.25 | 25 | 500 | 312.5 | 70 | |||
| 100 | 400 | 250 | |||||||
| 125 | 320 | 200 | 60 | ||||||
| 160 | 250 | 156.25 | |||||||
● flow error curve
● Pressure loss curve
● Dimensions and weight
| Nominal diameter | long L | width B | high H | Connection thread(D) | weight(kg) |
| (mm) | mm | ||||
| 15 | 165/190 | 99 | 104 | G3/4B | 1.5/1.6 |
| 20 | 190/195 | 99 | 106 | G1B | 1.7 |
| 25 | 260/225 | 104 | 120 | G1 1/4B | 2.6/2.4 |
| 32 | 260/230 | 104 | 120 | G1 1/2B | 2.8/2.7 |
| 40 | 300/245 | 125 | 155 | G2B | 5.4/4.5 |
| 50 | 300 | 125 | 155 | B2 1/2B | 7.2 |
| 280 | 158 | 175 | Flanged Press GB4216.4.84 D=165 D1=125 | 14 | |
● Conditions of Use
Working temperature no higher than 40 °c
Working pressure is less than 1MPa
