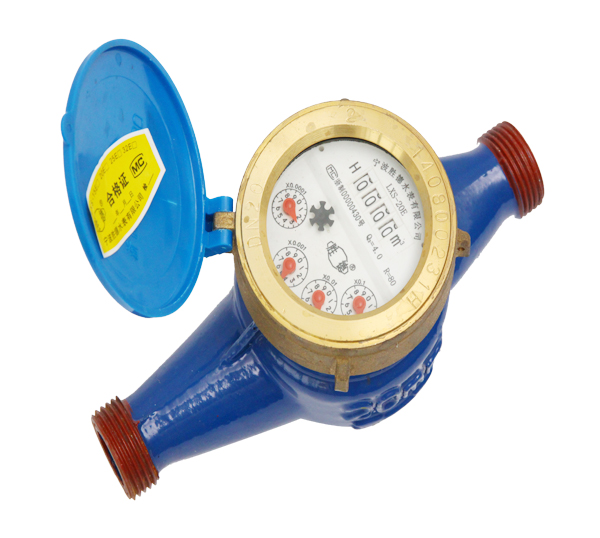

Name: LXS-15E ~ 50E wet cold water meter rotor type

Uses: This series of water meter for household or a resident unit passing through the pipeline measuring the amount of cold water to drink.

Conditions of Use:

Temperature class: T30

Pressure Level: MAP 10 / MAP 16

Pressure loss rating: △ P 63

Indication error limit:

From minimum flow (Q1) to excluding transitional flow (Q2) of the lower zone ± 5%

From the high zone of the transitional flow (Q2) to overload flow (Q4) of cold water ± 2%, ± 3% of hot water

Characteristics and main technical parameters:

More velocity, rotary wing, high accuracy, small starting flow rate, easy to read copy.

Stable and reliable performance, long life, beautiful appearance, water versatile, easy to replace maintenance.

This series of case materials optional copper, iron, stainless steel, aluminum and plastic composites.

Series versatility, easy maintenance and replacement; accurate, durable.

The main technical parameters:

● flow error curve

● Pressure loss curve

● Dimensions and weight

● Conditions of Use

Working temperature no higher than 40oC

Working pressure is less than 1MPa
